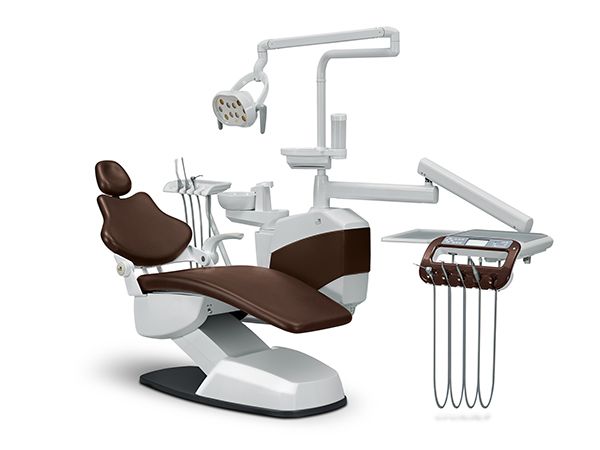

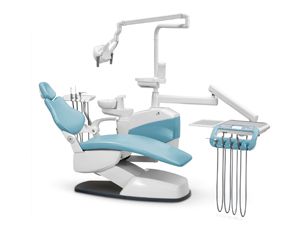

ZC-S400 Dental Chair Package (2020 Type)

ZC-S400 Dental Chair Package (2020 Type)
ZC-S400 Dental Chair Package (2020 Type) ZC-S400 Dental Chair Package (2020 Type) ZC-S400 Dental Chair Package (2020 Type) ZC-S400 Dental Chair Package (2020 Type) ZC-S400 Dental Chair Package (2020 Type)
Features
  • Classic ergonomic design gives patients and doctors pleasant and comfortable experience.
  • The plastic parts of the whole dental unit adopt injection molding technology and all gaps are fixed, neat and unified. The structure adopts push-pull buckle design, which is both beautiful and easy to disassemble.
  • The whole dental unit is stable and practical. Every detail is strictly designed and tested to provide optimum comfort for patients and great convenience for dentists.
Request a Quote

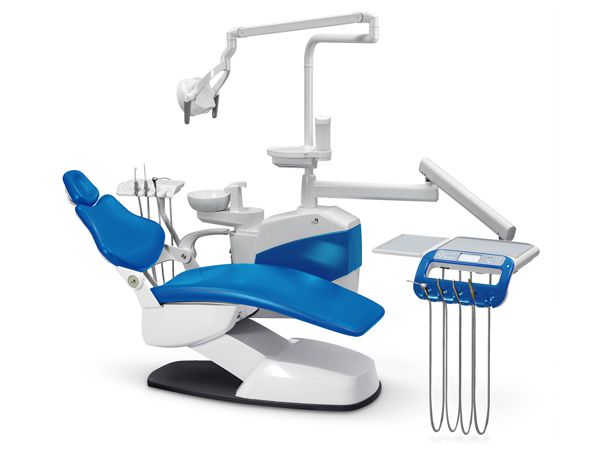

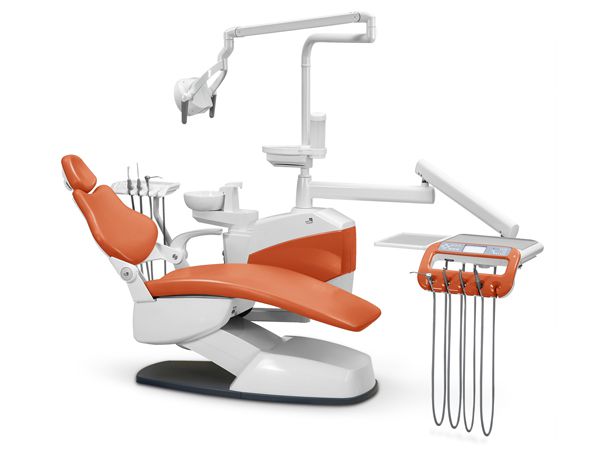

S400 2020 type dental chair package is designed with simple and elegant style. Its streamlined shape highlights the three-dimensional beauty. Classic and modern color matching meets your individual needs.

  • Details
  • Standard and Optional
  • More Info
  • Related Products
Details
  • ZC-S400 Dental Chair Package (2020 Type)

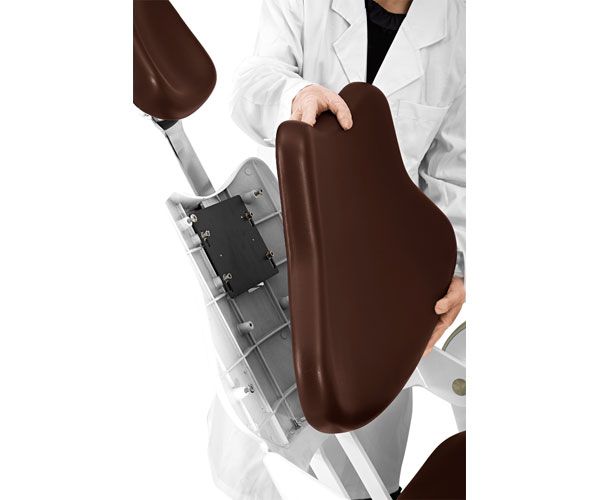

  • Integral aluminum alloy casting ensures stable structure, no deformation, and no rust. Due to the buckle type design, it's convenient for disassembly and replacement of backrest.

  • ZC-S400 Dental Chair Package (2020 Type)

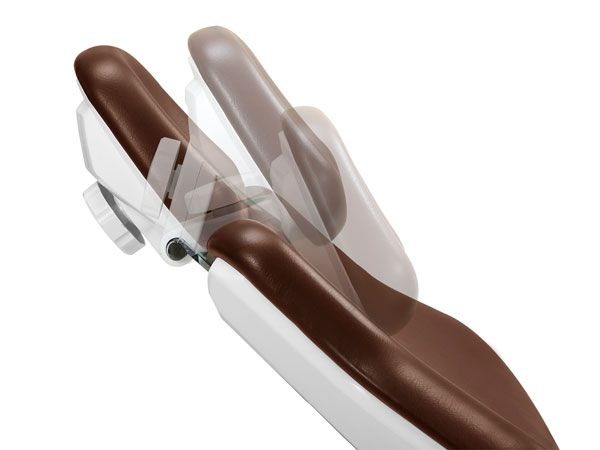

  • The headrest can be positioned at multiple angles for treatment and operation. The backrest can be completely repositioned in 9seconds.

  • ZC-S400 Dental Chair Package (2020 Type)

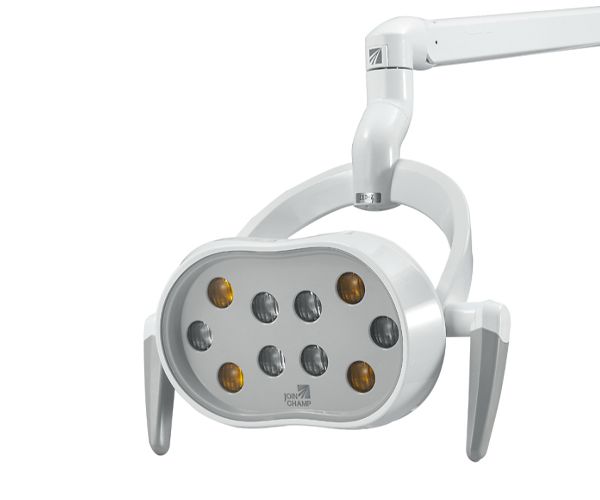

  • It has three-axis rotation, yellow and white light sources, touch switches, infrared sensor switches, which control the light to turn on and off. The intensity of the light source can be steplessly adjusted, the yellow and white light can be switched. The handle can be detached, cleaned and disinfected.

  • ZC-S400 Dental Chair Package (2020 Type)

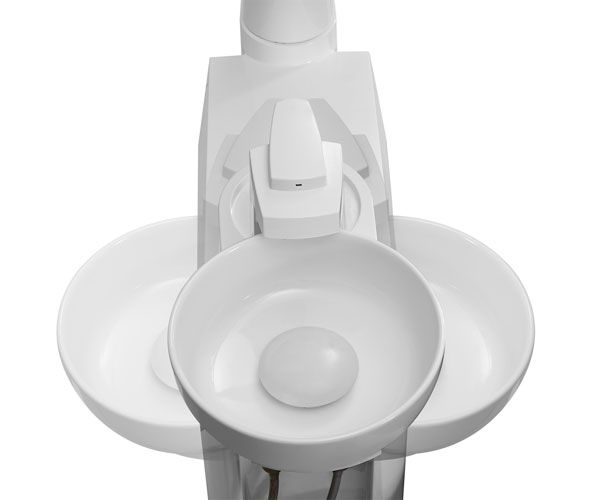

  • The rotary ceramic spittoon facilitates patients' spitting and four-handed operation for dentists.

  • ZC-S400 Dental Chair Package (2020 Type)

  • No-sticker integrated assistant control

    • Prevent the liquid from entering the circuit board through the gap of the sticker, improve the reliability of the circuit. Side handle makes operation easier.
    • The strong suction and saliva ejector can be turned off with a delay of 5 seconds to ensure that the dirt in tubes is completely drained.
    • The strong suction and saliva ejector handles are made of a combination of aluminum alloy and silicone, light weight and good sealing, can be removed for cleaning and disinfection. The flow can be adjusted by the handle flow switch.
  • ZC-S400 Dental Chair Package (2020 Type)

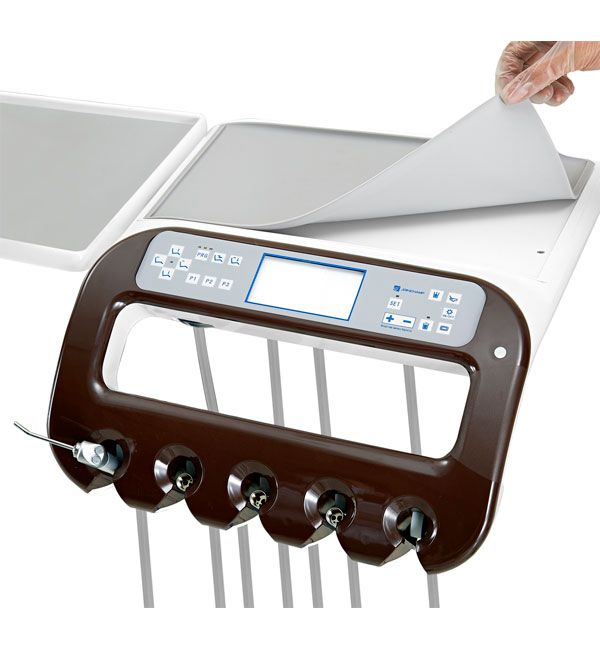

  • Multifunctional doctor table

    • Equipped with 9 memory positions, the dental unit can be set by three dentists A, B and C. Every dentist can set three commonly-used chair positions
    • Spitting position: During the treatment, when the patient needs to spit saliva or dirt, just press the "spitting" button, the dental chair will switch from the treatment position to the spit position, which is very convenient. The light will automatically turn off (if it is on) and the flushing water will turn on automatically; after spitting, press the "spitting" button again, the dental chair will return to the treatment position. At this time, the light will turn on and the flushing water will stop automatically.
    • Chair interlock system: During treatment, when the dentist uses a handpiece or a scaler, all movements of the dental chair are locked to prevent accidental injury due to the malfunction of the dental chair.
    • Pads on the tray can be removed and disinfected, convenient and hygienic.
  • ZC-S400 Dental Chair Package (2020 Type)

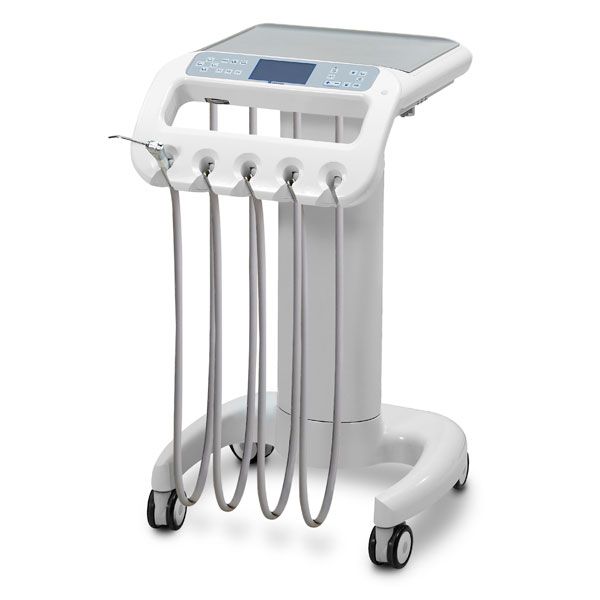

  • Trolley-type doctor table (optional)

    • Trolley-type doctor table reduces the burden of the whole dental unit and makes the chair more stable, eliminating the oppressive feeling from patients caused by instrument arm.
    • The base adopts aluminum alloy die-casting technology to improve the structural stability without deformation and rust.
    • Tiling design of key board is more user-friendly and good for accurate operation.
    • As for X-film viewer, the screen can be upgraded into color display for easier control and clearer vision (optional).
  • ZC-S400 Dental Chair Package (2020 Type)

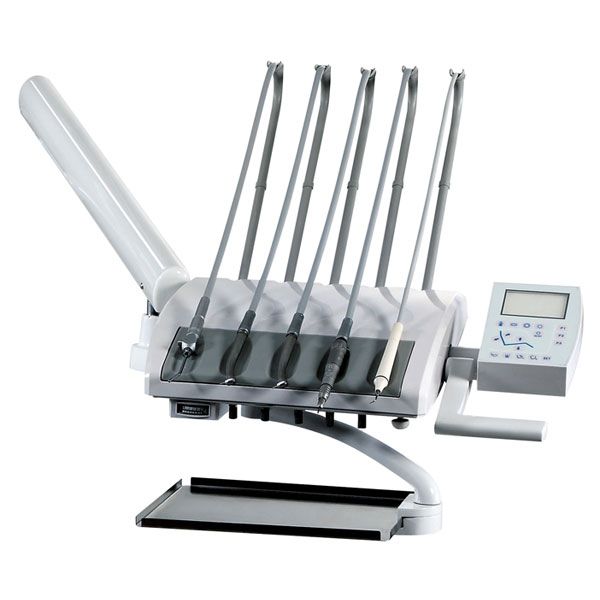

  • Top-mounted doctor table (optional)

    • Top-mounted doctor table with hided air lock valve can be adjusted to the height as you need.
    • Precise design of the rod can be easily pulled out and put back without any traction force, more flexible to operate at large angles, avoiding the dropping of handpieces and giving the best operational experience to dentist.
    • Handpiece pad can be removed and disinfected, easy for cleaning.
    • Itʼs convenient to remove the stainless steel tray for disinfection and cleaning.
  • ZC-S400 Dental Chair Package (2020 Type)

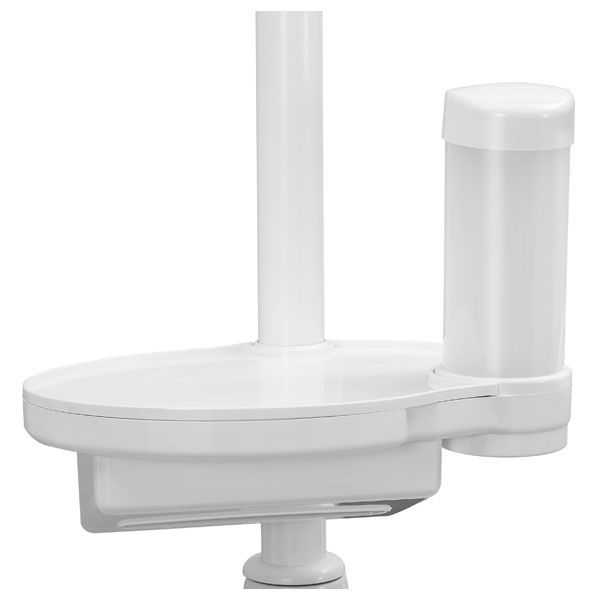

  • Practical 3-in-1 combined package
    The 3-in-1 package tissue box, tray, cup holder, less space, more practical and convenient.

  • ZC-S400 Dental Chair Package (2020 Type)

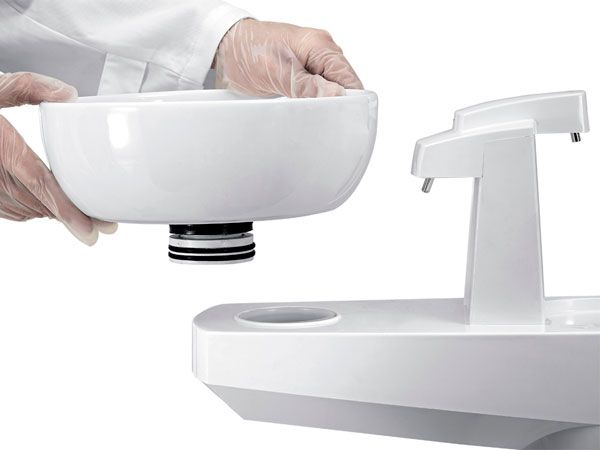

  • Ceramic cuspidor
    The ceramic cuspidor can be removed for cleaning and disinfection.

  • ZC-S400 Dental Chair Package (2020 Type)

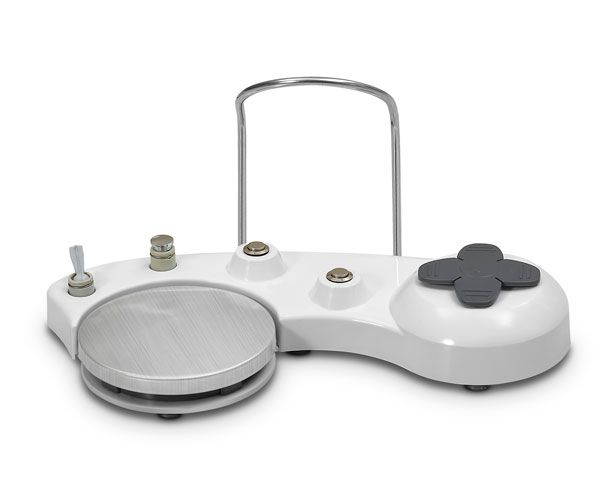

  • Multifunctional pedal switch
    The pedal switch can control the speed of the handpiece according to the strength of the step. It integrates dental chair control, blowing air, water spray from handpiece, flushing of the cuspidor and gargling water, which is convenient for dentists to use.

  • ZC-S400 Dental Chair Package (2020 Type)

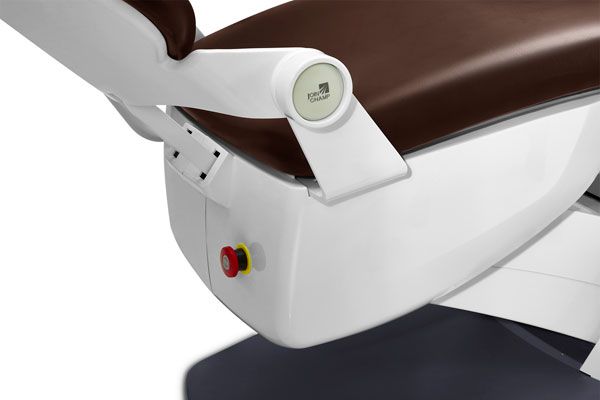

  • Water, air, electricity main switch and emergency stop switch
    One button controls water, air and electricity, practical and convenient. When the emergency stop switch is pressed, all electric actions of the dental unit will stop to prevent any accident.

  • ZC-S400 Dental Chair Package (2020 Type)

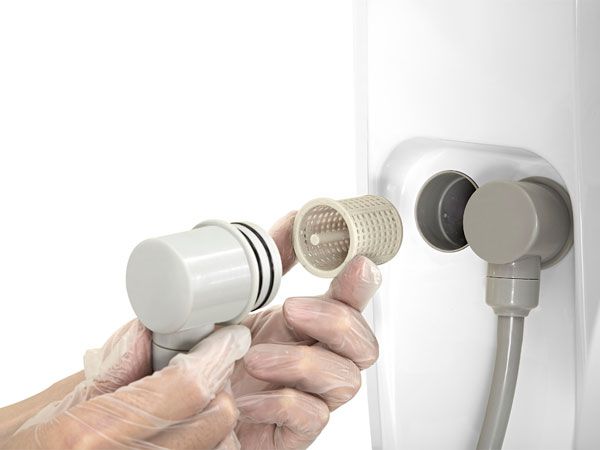

  • Filter of strong suction and saliva ejector
    The position of filter is designed with an inclined angle to prevent against bacteria breeding. A filter net is inside and can be easily removed for cleaning.

  • ZC-S400 Dental Chair Package (2020 Type)

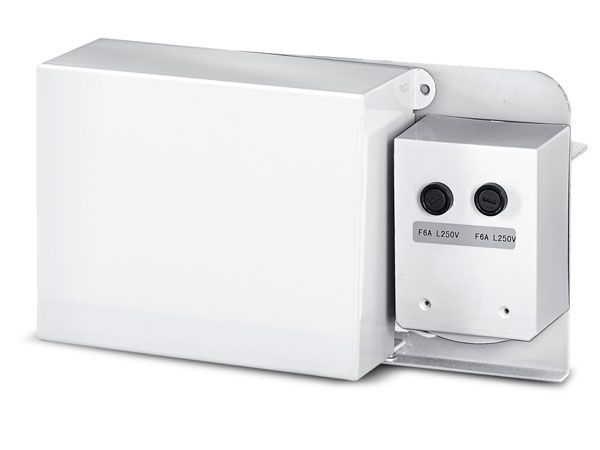

  • Enclosed power source
    According to the requirements of European safety regulations, the high-voltage part is enclosed, moisture-proof and splash-proof, preventing electromagnetic interference and providing stable power output.

  • ZC-S400 Dental Chair Package (2020 Type)

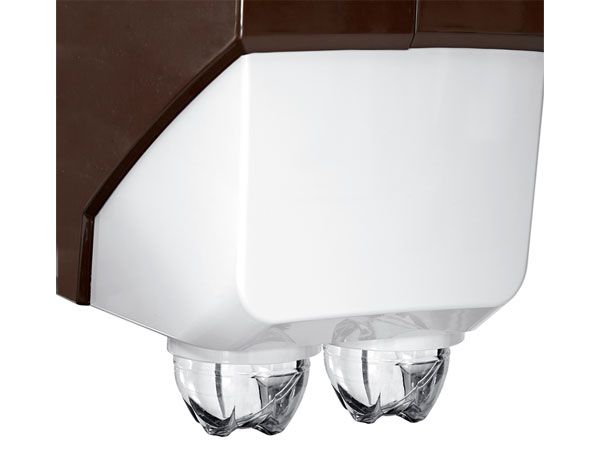

  • Built-out double water bottles
    The tandem double water bottles supply purified water twice as much as common units, which provide sufficient water for the operation. The double water bottles are built-out and thereʼs a guide port, which is convenient for dentists to assemble and disassemble.

Standard configurations
Unit body and Instrument Tray
  • Imported handpiece tubing: 3 pieces
  • Pressure gauge
  • 3-way syringe: 2 pieces (cold & warm)
  • Built-in X-film viewer: 1 set
  • Saliva ejector (water) and strong suction (air)
  • Plastic tray: 1 piece
  • Touch type LED operation light with sensor
  • Rotatable and detachable ceramic cuspidor
  • Double water bottle system
  • All inner air and water tubings are from USA
  • Cup filler/ tray/ tissue box
  • Touch-type assistant control panel
  • Semi-automatic disinfection system
Chair
  • Comfortable chair with high turning point and PU upholstery: 1 set
  • Silent motor: 2 pcs
  • Nine recorded seat positions by programming
  • New multifunctional foot pedal
  • Patient chair with single armrest
  • Dentist stool: 1 set
Optional configurations
  • Top-mounted instrument table
  • Control system for cart
  • Scaler
  • Leather patient chair with backrest and headrest
  • Curing Light
  • Intra-oral camera system
  • Monitor bracket
  • High-speed air turbine handpiece
  • Low-speed air motor handpiece
  • Double armrests
  • Fiber optic handpiece tube (with light)
  • Faro operation light
More Information
Technical Parameters
  • Power supply: 230V, 50Hz
  • Water source pressure: 0.2-0.4 MPa
  • Air source pressure: > 0.55 MPa
Upholstery color
Upholstery color
